Gardinia Avocet Replacement Upvc Door Handle 92PZ 163mm Screw Fix Roto Match White, Gold, Satin Silver, Polished Silver Color Universal Handle Set Retro Fit
- Spindle to Key: 92mm
- Screw Centres:163 mm
- Backplate Length: 296mm Purposely made longer and wider so that the new handles cover any old marks left once they are retro-fitted.
- Keyhole to Bottom Screw: 48mm
- Backplate Width: 35mm
- Backplate Depth: 8mm
- Spindle Width: 8mm square (sprung using cassettes)

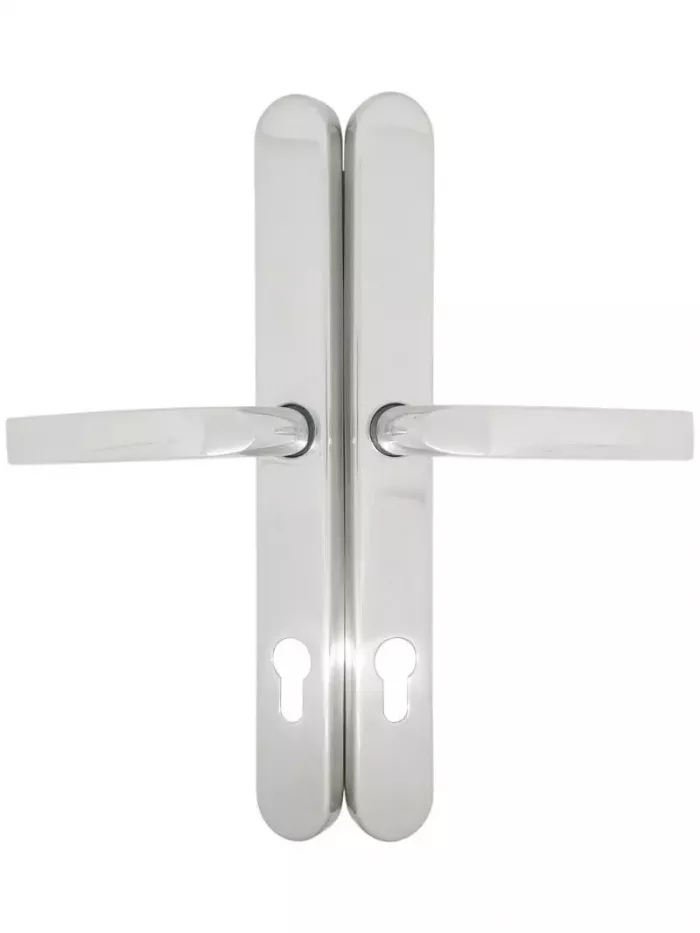

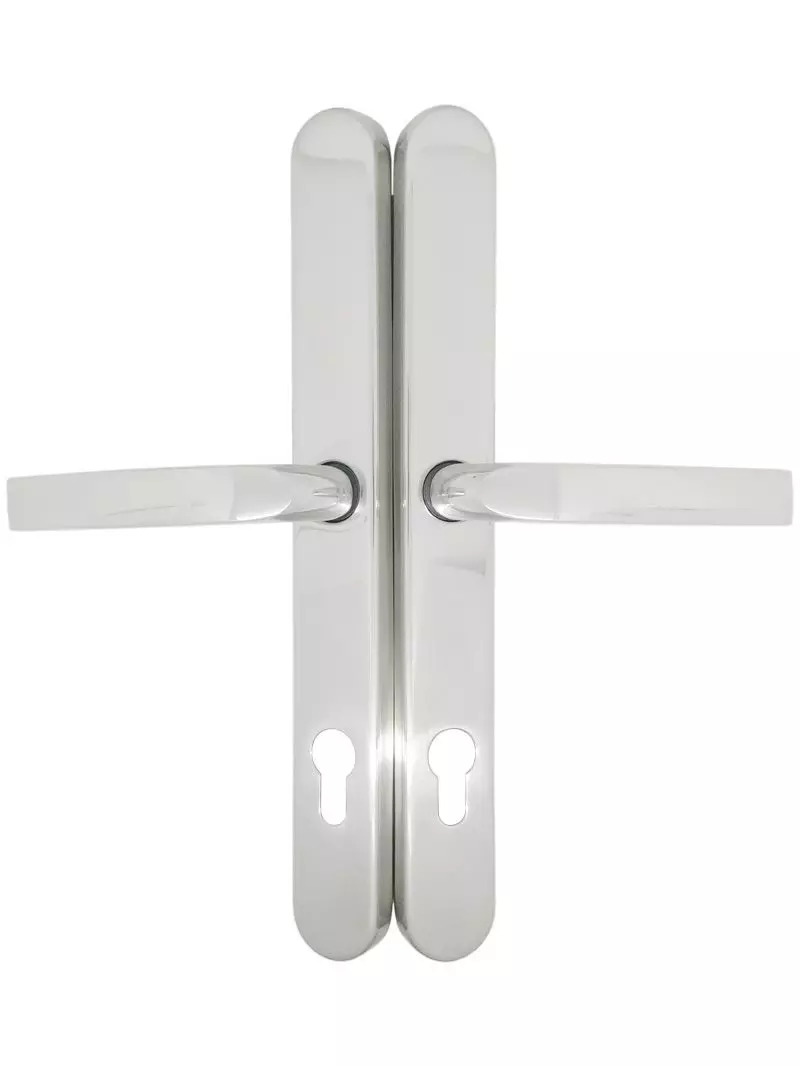

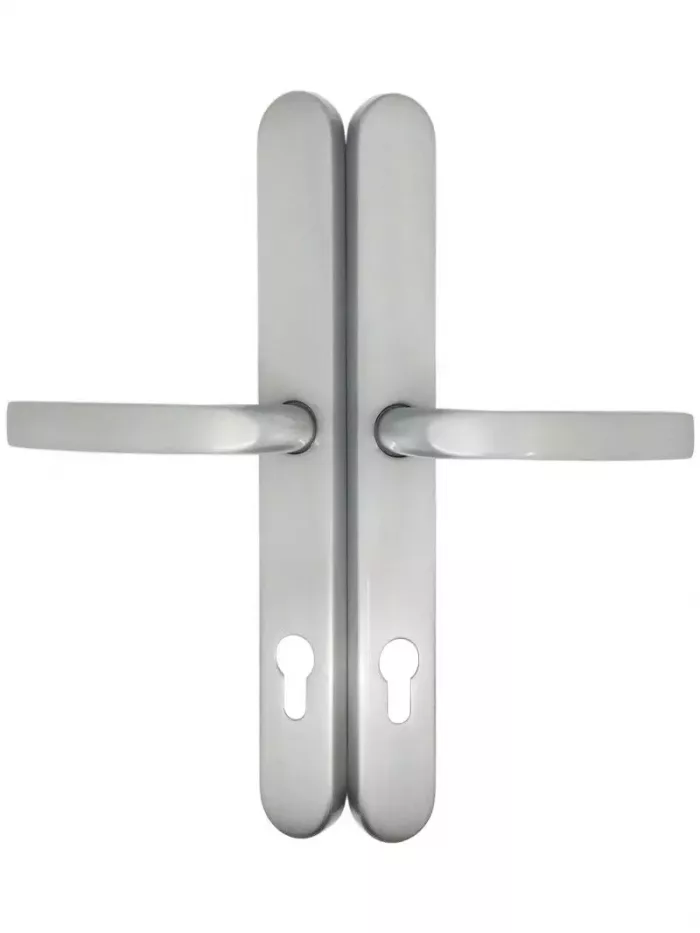

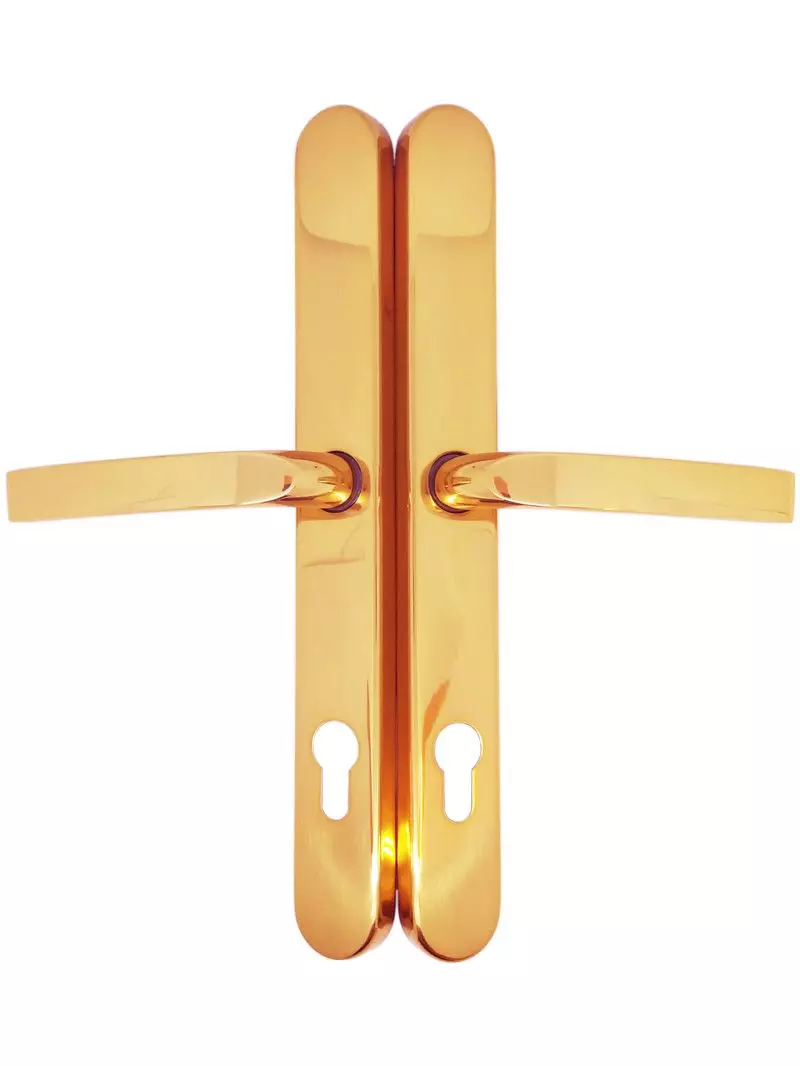

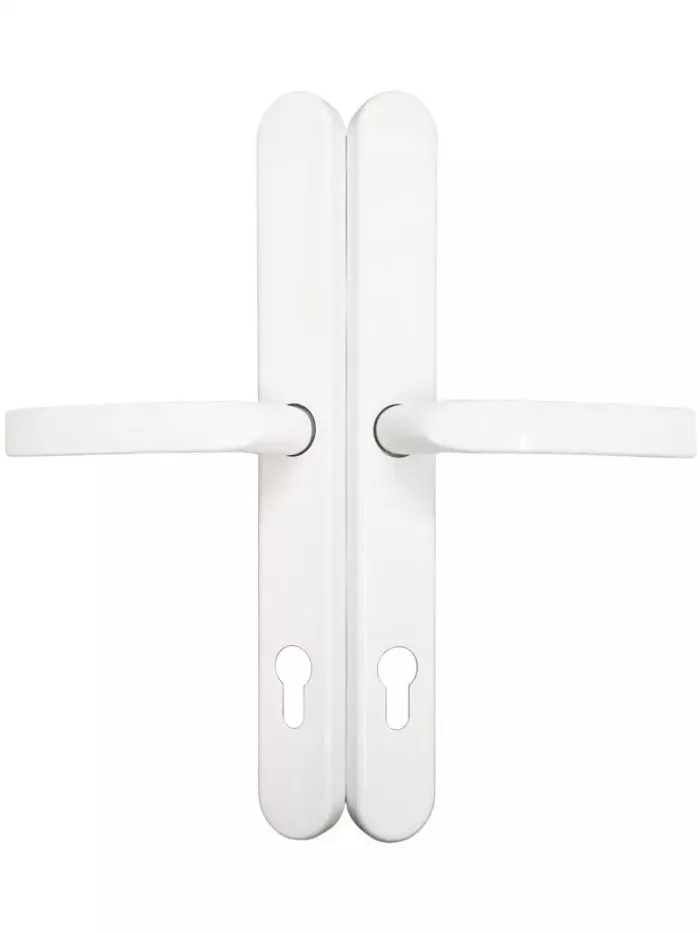

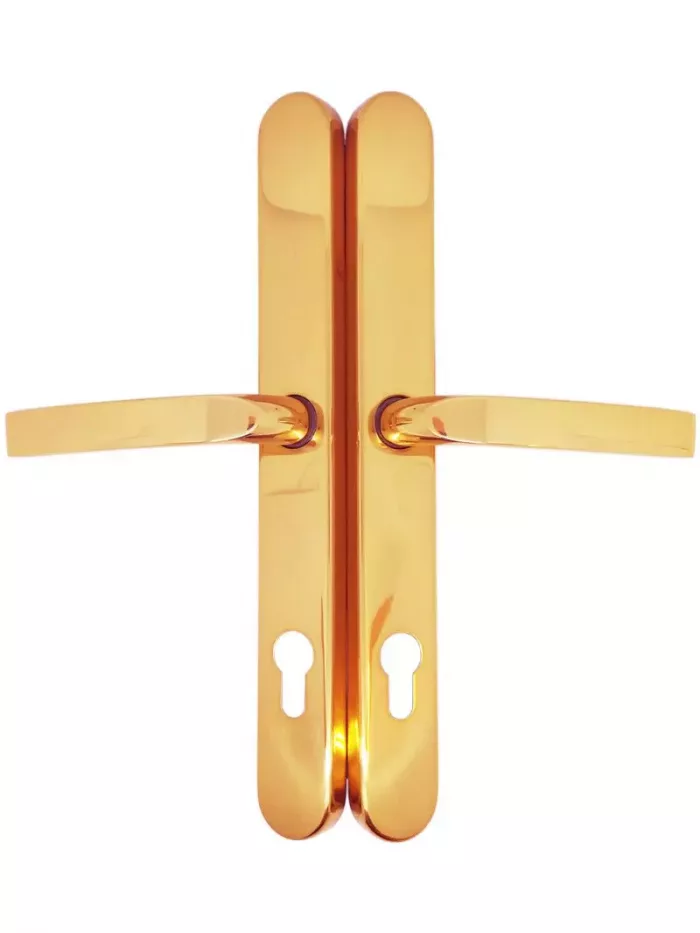

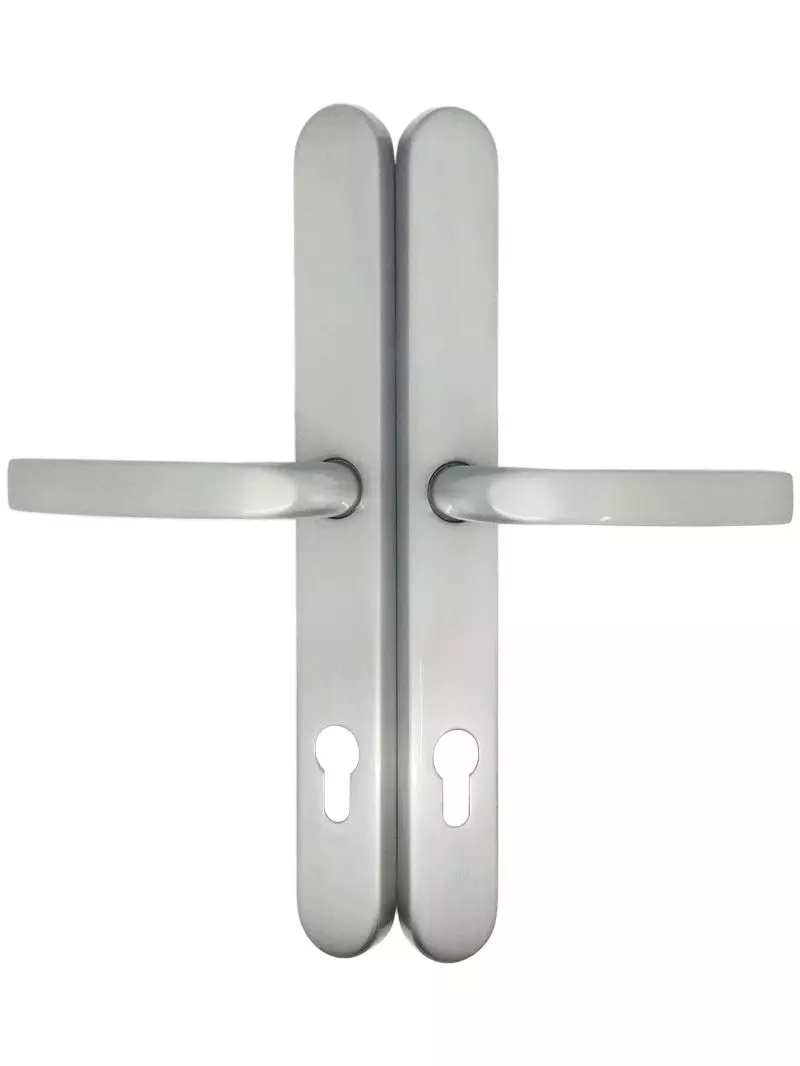

- Available in White, Polished Gold, Satin Silver, Polished Silver Chrome Finishes

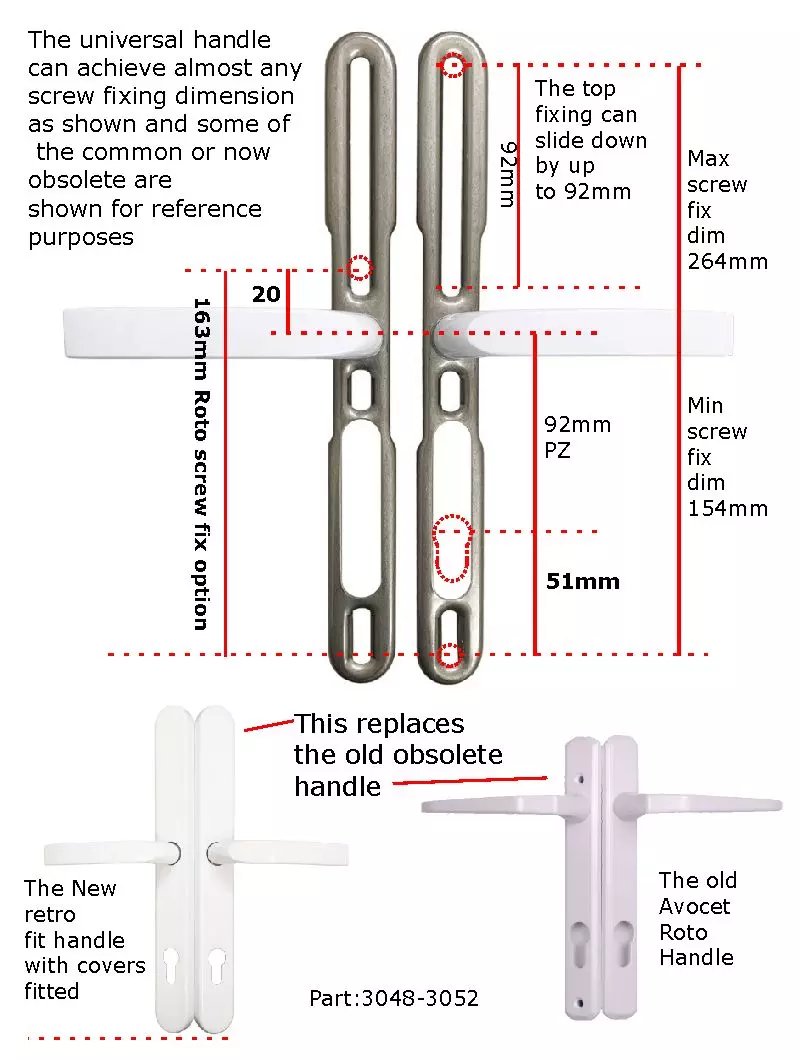

This is our Gardinia custom built and designed handle set kit to replace obsolete no longer available Roto Avocet door handles with a unique 92mm PZ and a 163mm top to bottom screw fixing (commonly referred to as a 160mm screw fixing) distance between the spindle and the key hole center. We collaborated with our distributor network to acquire, build, and design a universal handle set that will replace practically any old Roto Avocet 92mm PZ door handle that may have been installed on a double glass door throughout the years, and it also includes spring cassettes.
Many door lock systems have been installed for more than ten years, and in many cases for more than twenty years, making it impossible to source and repair door handles for these doors as they have become obsolete, leaving you with the only option of finding a door handle large enough to re-drill and rout new holes, etc. into the old door. The new Gardinia door handle line, on the other hand, has been built so that as long as you match the handle pz, in this case 92mm, you will not need to re-drill or carry out any routing details and may reuse the existing screw fixing holes.

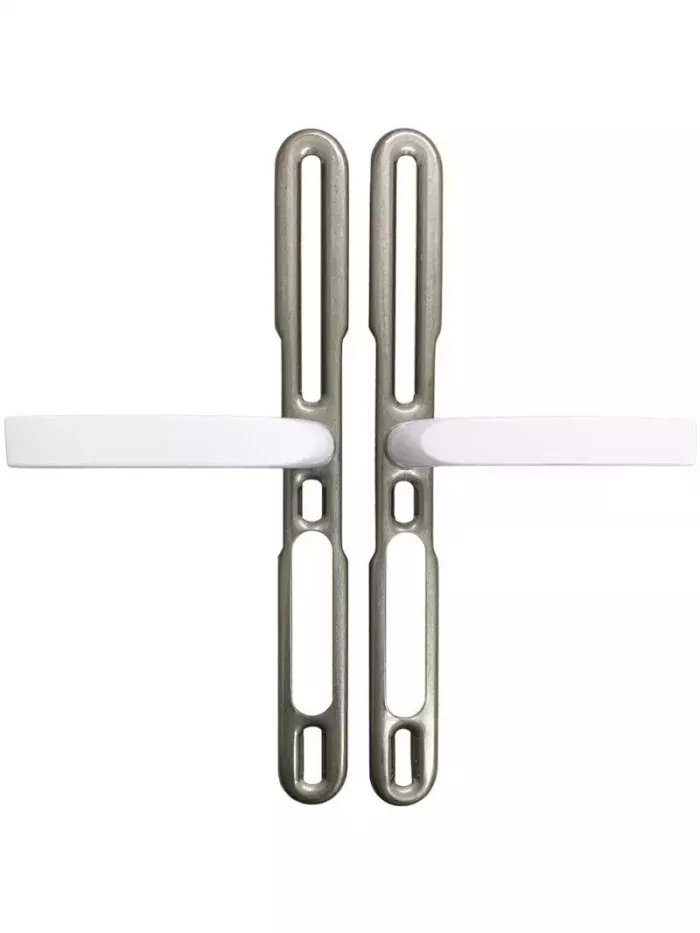

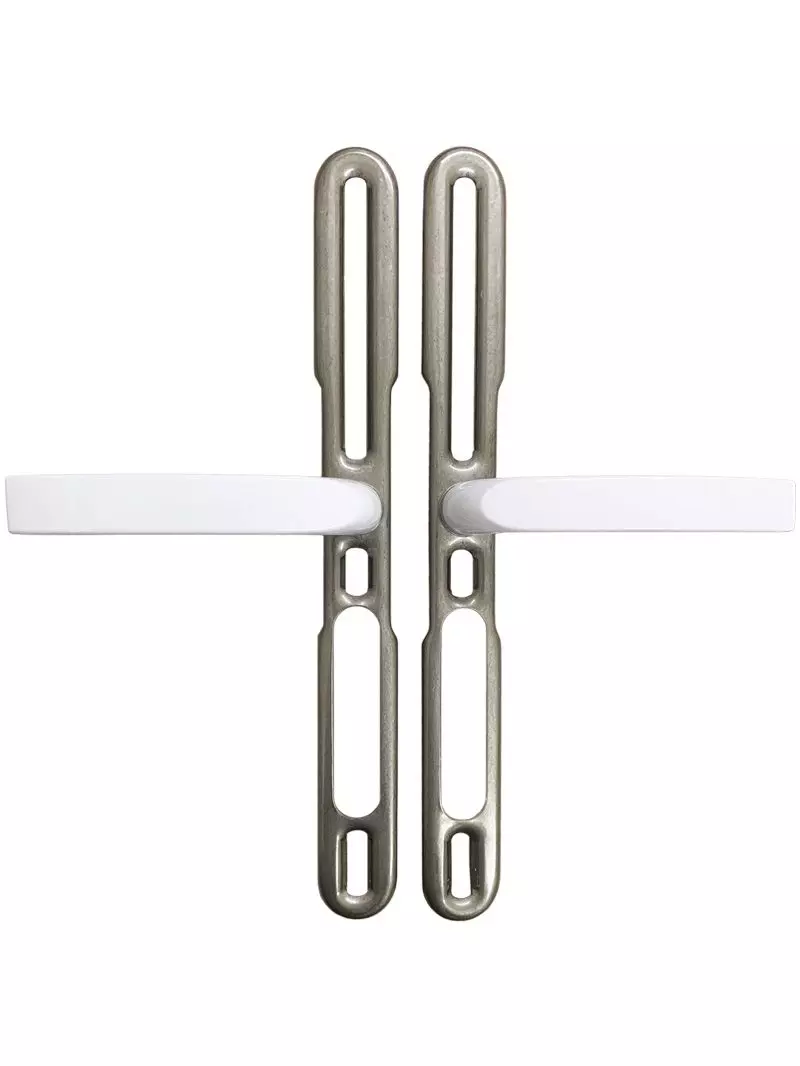

The door handle base plate allows the new screw fixings to be inserted in any position so that the old screw holes can be reused, which means that the repair or restoration can be completed by almost anyone with basic DIY skills and a screw driver and hacksaw to trim the screw fixing bolts and spindle to length, saving money on an expensive call out and installation by a locksmith.
What You Will Receive:
1 X pair of handles (1 for inside door & 1 for outside of door = 1 pair)

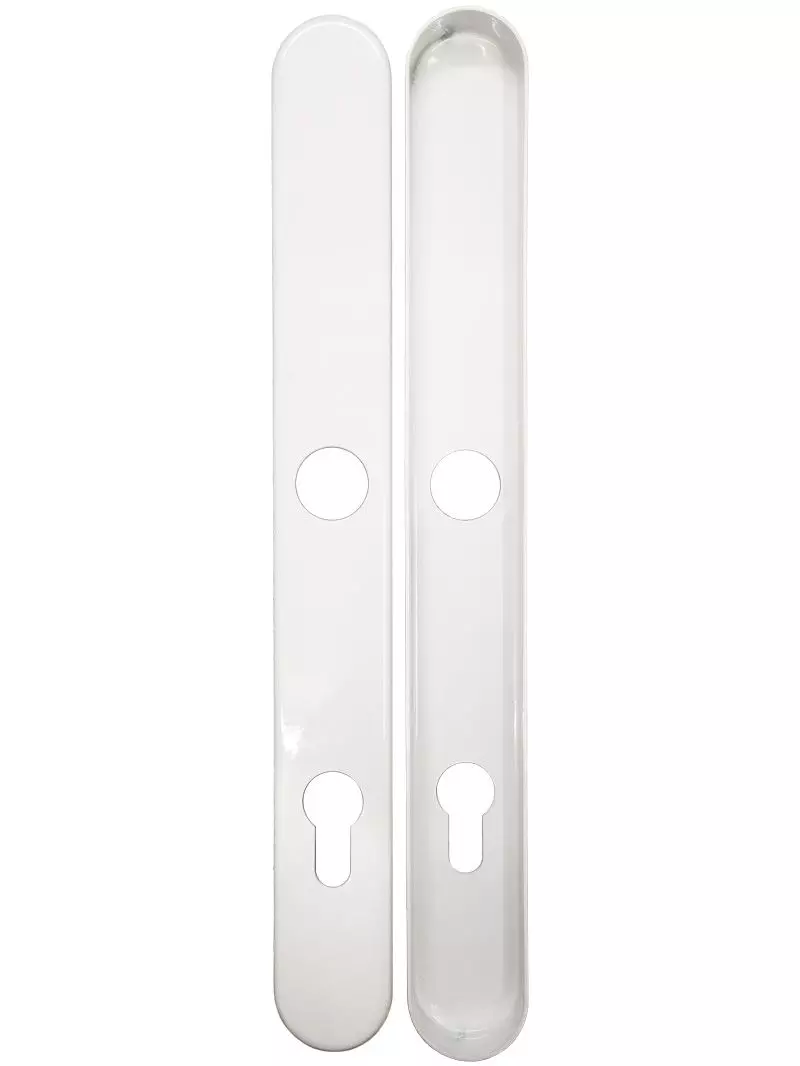

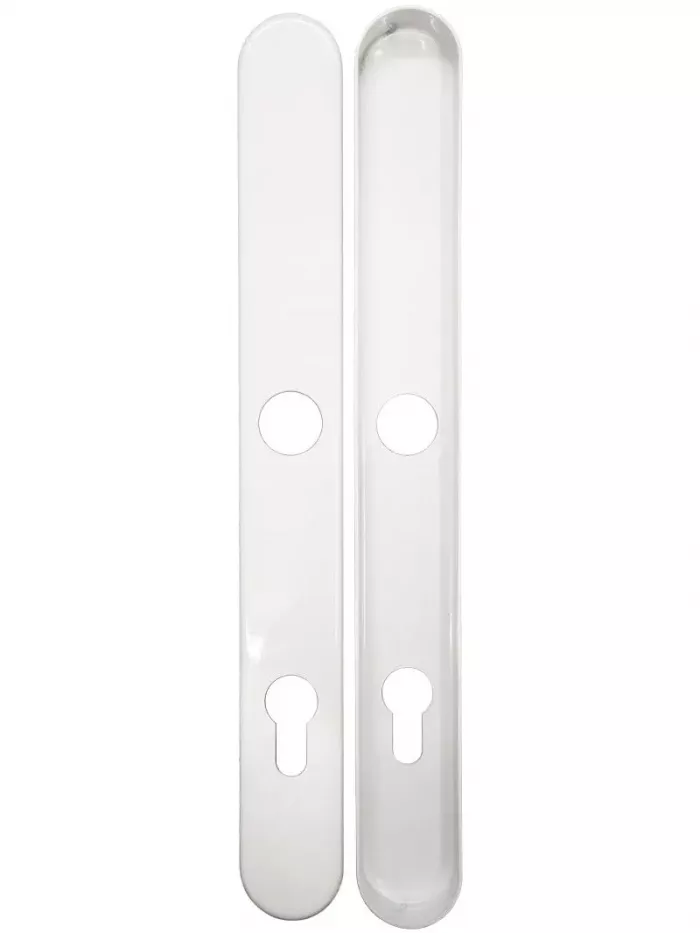

1 x pair matching color baseplate covers (1 for inside 1 for outside = 1 pair)
2 x M5 fixing bolts 85mm long with purpose made female high security bolt ends for external fixing
1 x 8mm Spindle
1 x pair of spring cassettes
Although Roto door locks advocated using handles with these fastening sizes to accommodate their lock mechanism, some fabricators utilized other brands of handles to suit.
Made to be longer and wider so that the new handles cover any old marks that remain after they are retrofitted.
Universal: Fits doors with either a left or right handed.
