For non-Euro-groove profiles, a Mila offset espag repair rod with mushroom cam lock points on the lock rod espagnolette. While most older 22mm backset offset locks have been withdrawn, the Mila offset 22mm lock rod is a suitable substitute. This UPVC espag window lock will work with practically all older offset rods. Because the handle screw centres are universal, they will fit any existing handle. You may need to adjust the striker keeps on the outside frame to accommodate the new espag, but this is as simple as removing the fastening screws and reinstalling in the new location.

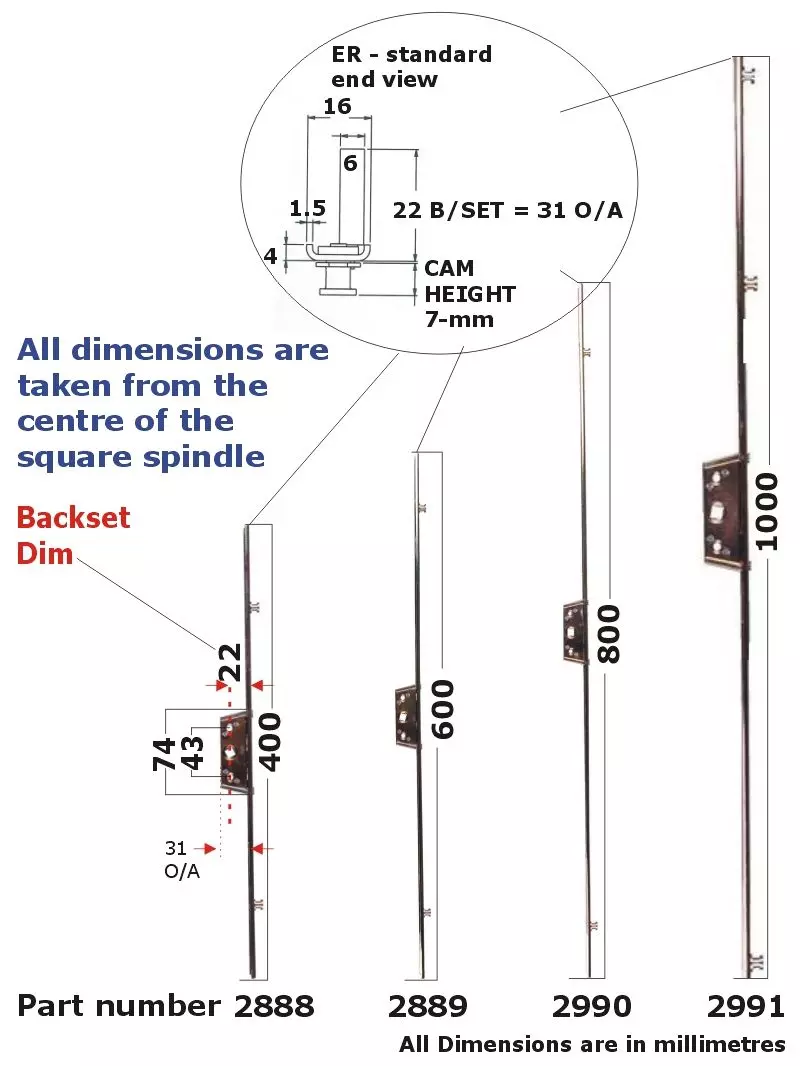

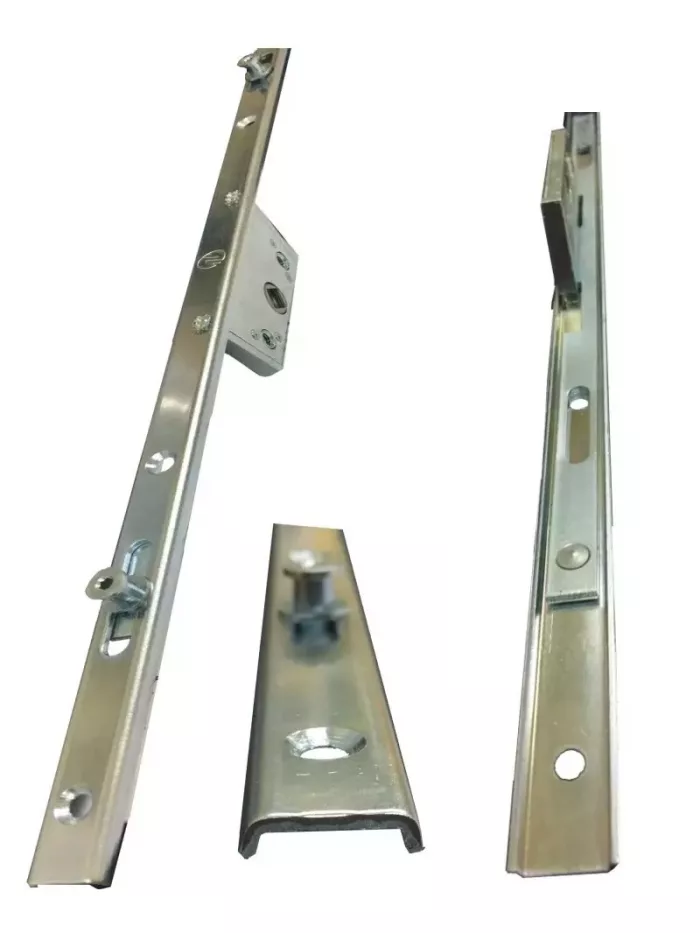

Mila Offset Window Lock Rod 22mm Backset 400 – 1000mm U Rail Track
Description
Mila 22mm Backset Offset Lock Upvc Window Rod Replacement U Rail Faceplate Mushroom Cam
- Backset: 22mm

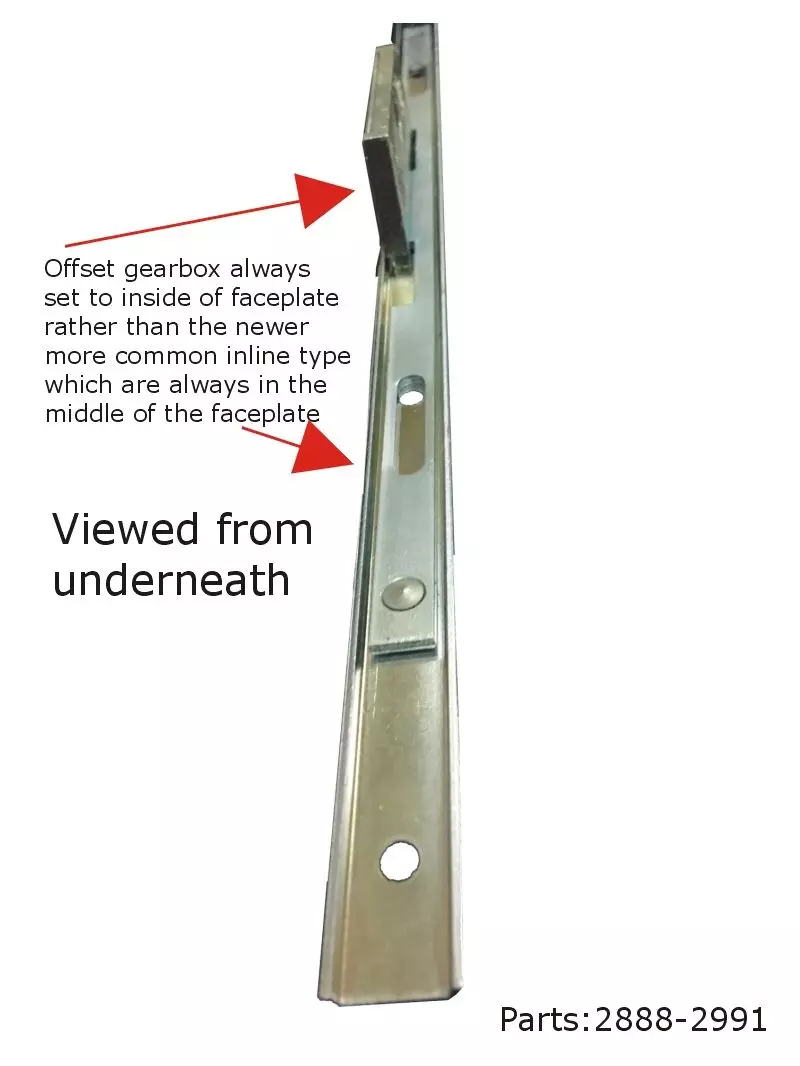

- Gearbox Mounted: Offset

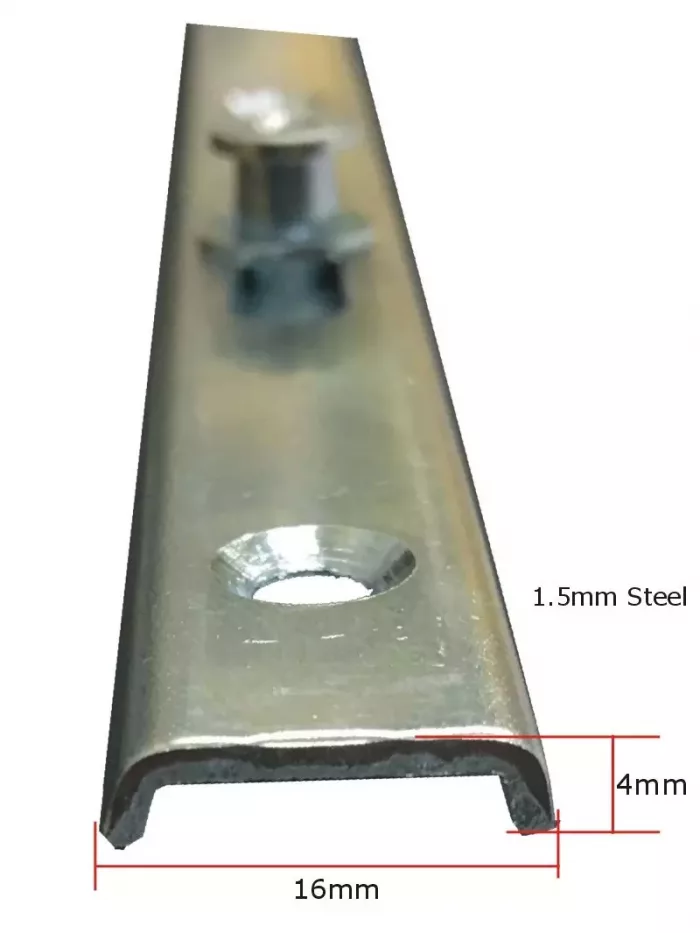

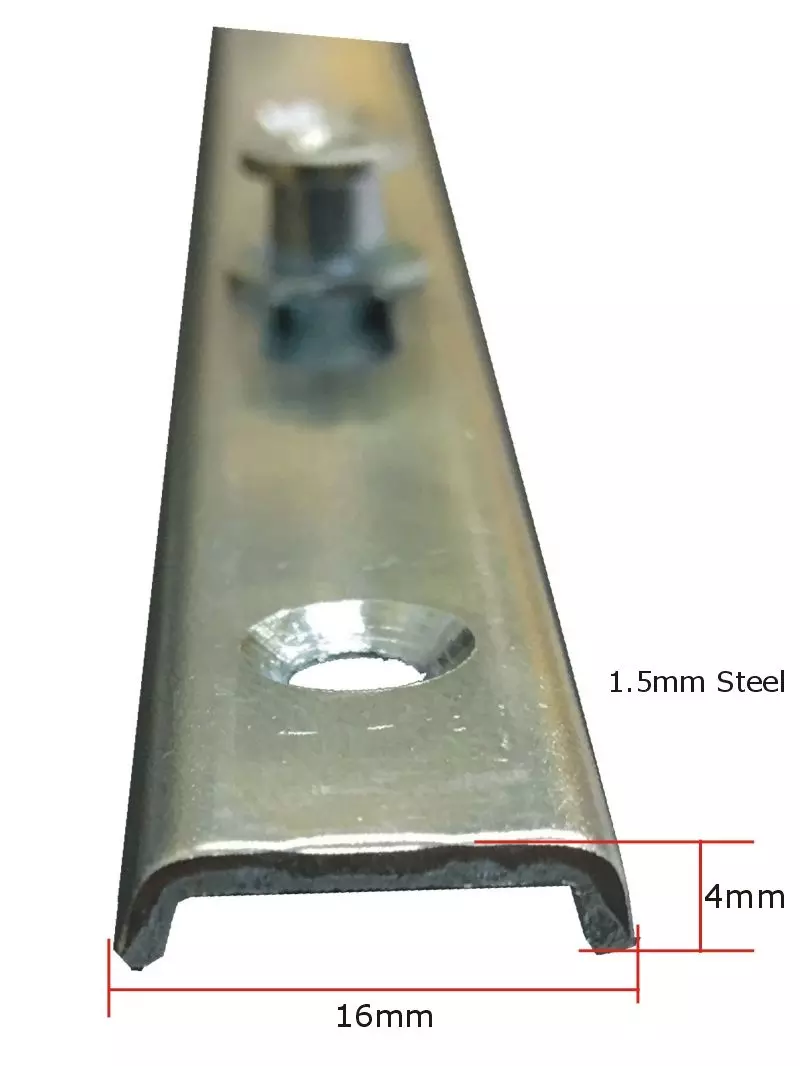

- Faceplate: 16mm U Rail Type
- Length: Varies 400mm to 1000mm long
- Locking Point Type: Mushroom 7mm Height
- Number of Locking Points: 2 on 400mm to 800mm, 3 on the 1000mm
With a little effort, it is possible to replace the old Mila offset 5 series lock. This espag will work with most older offset espags. Because the handle screw centres are universal, they will fit any existing handle. You may need to adjust the striker keeps on the outside frame to accommodate the new espag, but this is as simple as removing the fastening screws and reinstalling in the new location.
The new lock cams have an Allen key hole in them that, when turned, moves the cams in and out by approximately 1-2mm to modify window compression.
What You Will Receive:
1 X Window lock
